How to install phpvirtualbox on ClearOS 6.3 server

Phpvirtualbox is the web GUI to manage the headless Virtualbox installed on ClearOS 6.3. Read our previous tutorial on how to install virtualbox 4.2 on ClearOS 6.3 server. phpvirtualbox enable us to create, edit, delete or view the guest host console via web browser. It’s a pretty cool to view virtualbox on a web browser.

phpvirtualbox-1

This tutorial is going to show you how to install and configure phpvirtualbox on ClearOS 6.3 server. I assume you have installed the latest Virtualbox 4.2 on ClearOS 6.3.

Login as root.

su

Add new vbox user and add to vboxusers group and create password for this vbox user.

useradd -m vbox -G vboxusers
passwd vbox

Create file /etc/default/virtualbox and fill this file with VBOXWEB_USER=vbox.

nano /etc/default/virtualbox

[...] /* Username / Password for system user that runs VirtualBox */ var $username = 'vbox'; var $password = 'secret'; [...]

and enter this line into it.

VBOXWEB_USER=vbox

Next add entry to the system so it will load vboxweb-service to be loaded on system startup

chkconfig --levels 235 vboxweb-service on
/etc/init.d/vboxweb-service restart

Now install Apache web server and PHP

yum install httpd php php-mysql php-pear apr apr-util-sqlite apr-util-ldap apr-util wget

Configure system to start the web server upon boot

chkconfig --levels 235 httpd on

Start Apache

/etc/init.d/httpd start

Now download and configure the phpvirtualbox

cd /var/www/html
wget http://phpvirtualbox.googlecode.com/files/phpvirtualbox-4.2-3b.zip

Since the phpvirtualbox version changed over time, you can check the latest one here: http://code.google.com/p/phpvirtualbox/downloads/list

unzip phpvirtualbox-4.2-3b.zip
mv phpvirtualbox-4.2-3b phpvirtualbox
cd phpvirtualbox
cp config.php-example config.php

Now open config.php and change the password with the vbox user password we’ve created earlier.

nano config.php



[...]
/* Username / Password for system user that runs VirtualBox */
var $username = 'vbox';
var $password = 'secret';
[...]

Now we can start using phpvirtualbox. Open web browser and type this address (change the ip address with your own server.

http://192.168.1.100/phpvitrtualbox

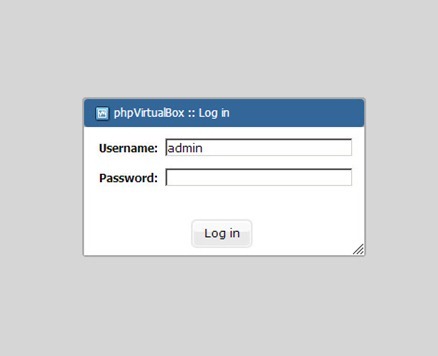

Use username: admin and password admin to log in. Now we can start managing the Virtualbox on ClearOS 6.3 Server.

phpvirtualbox-2
